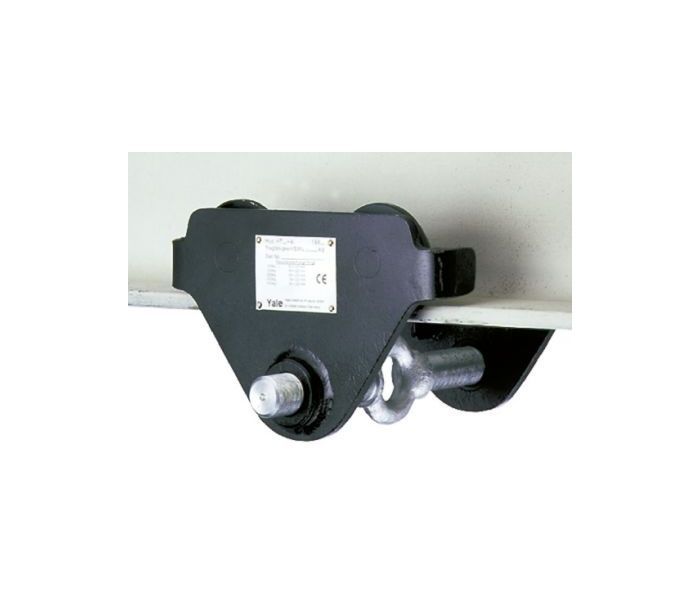

Yale HTP Push Travel Beam Trolleys 500 kg to 5,000 kg
Key Features
- Capacities 500 kg to 5000 kg
- Corrosion resistant version 500 kg to 2000 kg
- The HTP trolley enables the exact positioning or easy traversing of large loads with either manual or powered hoisting equipment. It has excellent rolling features due to machined steel wheels mounted on prelubricated, encapsulated ball bearings.
- Adjustable to fit a wide range of beam widths and profiles (e.g. INP, IPE and IPB). The trolley wheels are designed for a max. beam profile incline of 14%.Adjustments are made by rotating the clevis load bar which also ensures the centred positioning
- Anti-tilt and wheel fracture support devices according to DIN 15018 and the machinery directives are standard.
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
Standard finish 500 kg - 5,000 kg
Corrosion Resistant (CR) 500 kg - 2,000 kg
| Model | Capacity kg |
Size | Beam flange width b mm |
Beam flange thickness t max. mm |
Curve radius min. m |
Weight* kg |
Weight* with locking device kg |
| HTP 500 | 500 | A | 50 - 220 | 25 | 0.9 | 8.0 | 14.5 |
| HTP 1000 | 1000 | A | 50 - 220 | 25 | 0.9 | 9.0 | 17.0 |
| HTP 2000 | 2000 | A | 66 - 220 | 25 | 1.15 | 16.0 | 24.0 |
| HTP 3000 | 3000 | A | 74 - 220 | 25 | 1.4 | 32.0 | 41.2 |
| HTP 5000 | 5000 | A | 90 - 220 | 25 | 1.8 | 48.0 | 58.5 |
| HTP 500 | 500 | B | 160 - 300 | 40 | 0.9 | 10.6 | 17.1 |
| HTP 1000 | 1000 | B | 160 - 300 | 40 | 0.9 | 12.0 | 20.0 |
| HTP 2000 | 2000 | B | 160 - 300 | 40 | 1.15 | 19.3 | 27.3 |
| HTP 3000 | 3000 | B | 160 - 300 | 40 | 1.4 | 35.8 | 45.0 |
| HTP 5000 | 5000 | B | 180 - 300 | 40 | 1.8 | 52.2 | 62.7 |
The HTP trolley enables the exact positioning or easy traversing of large loads with either manual or powered hoisting equipment. It has excellent rolling features due to machined steel wheels mounted on prelubricated, encapsulated ball bearings.
Adjustable to fit a wide range of beam widths and profiles (e.g. INP, IPE and IPB). The trolley wheels are designed for a max. beam profile incline of 14%. Adjustments are made by rotating the clevis load bar which also ensures the centred positioning of the hoist in the clevis - no creeping to the left or the right. Anti-tilt and wheel fracture support devices according to DIN 15018 and the machinery directives are standard.
Also available in explosion protection version
