Yale Mtrac ‘MINI’ ENDLESS WINCH / HOIST - Yale Hoists - Yale - By Brand
Yale Mtrac ‘MINI’ ENDLESS WINCH / HOIST
Key Features
- Available voltages 230V, 400V and 110V (Late 2018)
- Single speed or dual speed lifting
- Loads of optional features - Remote control, bi-directional lifting, double fall for increased capacity)
- Remote control available
- Additional ropes up to 150 metres
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions

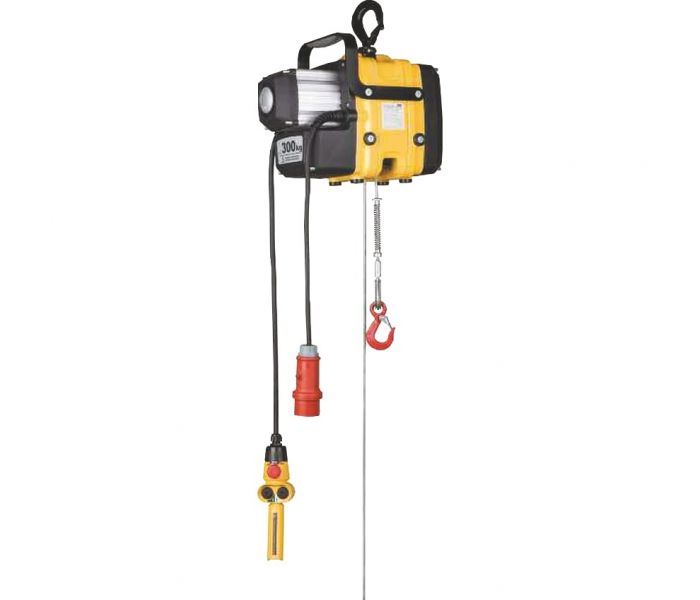

Yale Mtrac ‘MINI’ ENDLESS WINCH
INNOVATIVE ENGINEERING
Capacities: 66 - 300kg (two-fall design up to 600kg, optional)
The YaleMtrac® endless winch combines state-of-the-art industrial design with technical innovation to solve a specific customer need – the need for a safe and simple handling solution for mobile applications.
We did just that. Because the rope of the endless winch is not collected during operation, there is no limit to the lifting height and traction length when using this product. And, with a full offering of wire ropes and accessories,
this winch can be used in virtually any application requiring a hoist.
FEATURES AND FINISH
STANDARD FEATURES
- Capacities 66kg to 300kg in single-reeved configuration (up to 600kg in two-part reeved configuration, optional).
- Control pendant (IP 65-type of enclosure) is connected via a control cable.
- Standard power cable has a length of 1.0m and is fitted with a CEE connector plug.
- 42V low-voltage control
- Ergonomic, fitted carrying handle features a comfortable plastic grip.
- Mounting feet fixed on the housing for easy set up.
- Operating voltages of 400v 3-ph 50Hz or 230v 1-ph, 50Hz (110v 1-ph 50Hz will be available late 2018)
- Galvanized, high-density, rotation-resistant steel rope is 10m long (dia. 6.5mm) and features a safety hook with a rounded, plastic-coated tip at the loose end.
- Two spring buffers with adjusting rings can be attached to the wire rope to set the limit switches for both upward and downward movement.
FINISH DETAILS
- Drive sheave is made of especially hardened steel designed to ensure long service life.
- The patented (German Patent DE 10 2012 100 099) bi-directional paddle actuator ensures the rope is safely guided and securely held in place.
- Slip clutch is located outside of the load path for added safety.
- Limit switches ensure safe cut-out for the upper and lower hook positions.
- Electromagnetic brake holds the load safely, even in the event of a power failure.
- Winch is classified up to 1 Bm/M3 acc. to FEM/ISO.
- Winch is protected up to IP 55.
- Bi-directional lifting
EASY MAINTENANCE AND INSPECTION
The Yale Mtrac winch is easy to maintain. Each unit is designed with a modular structure as well as easy access to critical parts and electrical components for quick and efficient repairs.
Additionally, operators can adjust the slipping clutch and inspect the brakes with ease.
|
Models |
Article |
Single fall (standard) |
Double fall (optional) |
Motor kW |
Operating |
||
|
Capacity kg |
Lifting |
Capacity kg |
Lifting |
||||
|
YMT 1-15 |
192051388 |
100 |
15 |
200 |
7.5 |
0.37 |
230v 1Ph 50Hz |
|
YMT 3-5 |
192051389 |
300 |
5 |
600 |
2.5 |
0.37 |
230v 1Ph 50Hz |
|
YMTF 0.6-30 |
192025175 |
66 |
30/7.5 |
130 |
15/3.7 |
0.37/0.09 |
400v 3Ph 50Hz |
|
YMT 1-30 |
192025171 |
100 |
30 |
200 |
15 |
0.55 |
400v 3Ph 50Hz |
|
YMTF 2-10 |
192025176 |
200 |
10/2.5 |
400 |
5/1.3 |
0.37/0.09 |
400v 3Ph 50Hz |
|
YMT 3-10 |
192025174 |
300 |
10 |
600 |
5 |
0.55 |
400v 3Ph 50Hz |
|
YMT 1-15 |
192051392 |
100 |
15 |
200 |
7.5 |
0.37 |
110v 1Ph 50Hz |
|
YMT 3-5 |
192051393 |
300 |
5 |
600 |
2.5 |
0.37 |
110v 1Ph 50Hz |
All units supplied c/w LVC 42v with 2.3mtr control cable, 1mtr supply cable with plug and 10mtr rope. Unit weights 24-26kgs. Weight of the winch without rope. Approx 24 - 26kgs depending on configuration.
Optional Extras
|
Article no. |
Description |
|
192027953 |
Protection frame and mounting kit |
|
192039508 |
Wire rope 6.5mm x 5m inc. taper & hook |
|
192027943 |
Wire rope 6.5mm x 10m inc. taper & hook |
|
192035903 |
Wire rope 6.5mm x 20m inc. taper & hook |
|
192035904 |
Wire rope 6.5mm x 30m inc. taper & hook |
|
192035905 |
Wire rope 6.5mm x 40m inc. taper & hook |
|
192035906 |
Wire rope 6.5mm x 50m inc. taper & hook |
|
192035907 |
Wire rope 6.5mm x 60m inc. taper & hook |
|
192035908 |
Wire rope 6.5mm x 70m inc. taper & hook |
|
192035909 |
Wire rope 6.5mm x 80m inc. taper & hook |
|
192035910 |
Wire rope 6.5mm x 90m inc. taper & hook |
|
192035911 |
Wire rope 6.5mm x 100m inc. taper & hook |
|
192038104 |
Wire rope 6.5mm x 150m inc. taper & hook |
|
Article no. |
Description |
|
192043475 |
Stainless steel wire rope 6.5mm |
|
N00610106 |
Supply cable for 400v unit per 1mtr |
|
4300007036 |
Supply cable for 230v unit per 1mtr |
|
4300007037 |
Supply cable for 110v unit per 1mtr |
|
N00610175 |
Control cable 1 speed per 1mtr |
|
192020765 |
Control cable 2 speed per 1mtr |
|
192038496 |
Radio control inc. mounting plate |
|
192049595 |
Conversion kit, YMT Bi-directional lift |
|
192050160 |
Conversion kit, YMT Mini double reeving kit |
- Two-fall design
- Electromagnetic brake
- Slipping clutch
- Low voltage control
- P A T E N T E D * BI-DIRECTIONAL ACTUATOR - FOR BI-DIRECTIONAL LIFTING
