Yale PT-A Ratchet Lever hoist Pul-Lift with link chain - Yale Hoists - Yale - By Brand

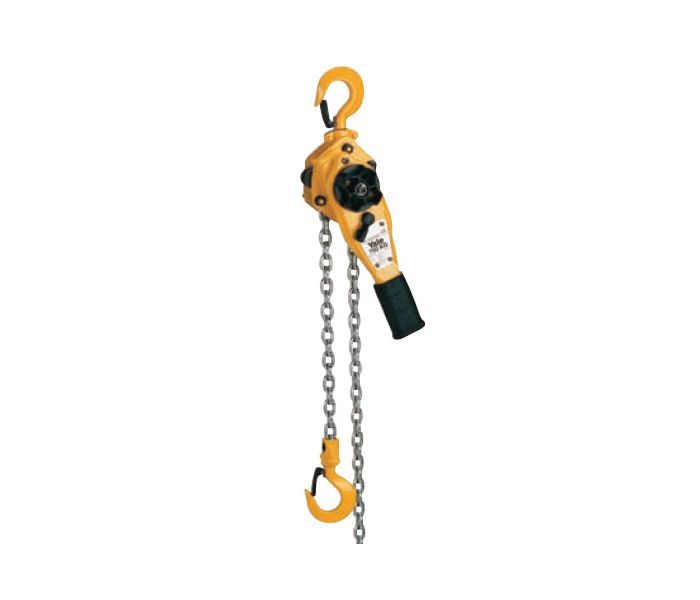

Yale PT-A Ratchet Lever hoist Pul-Lift with link chain
Key Features
- The Most Universal Ratchet Lever Hoist In The Yale Range
- 800, 1600, 3200 & 6300 Kg Capacity
- Standard Height of Lift 1.5M, Contact Sales For Longer Height of Lift
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
Buy online with a standard 1.5-metre height of lift.
For longer lifts - please contact our sales team.
Ratchet lever hoist model PT - Capacity 800 - 6300 kg
The most universal lever hoist in Yale’s range just got even better!
The Yale PT-Series A is the new generation and improved version of the universally acclaimed PT lever hoist.
This lever hoist is extremely versatile and used in industries such as utilities, manufacturing, service and repair,
and construction.
Features and benefits include:
- New enclosed handwheel designed to reduce the ingress of water, dirt and debris
- New safety latch design gives positive engagement with the hook to prevent accidental disengagement
- Now featuring a shorter hand lever giving better performance in enclosed spaces
- Easy to use due to optimized gearing and improved bearings in the housing cover resulting in
minimum effort required to operate the hand lever - Automatic load brake based on the principle of Thomas Weston’s patent of 1875
- Rugged design provides an impact-resistant stamped steel frame to withstand rigorous use.
- Easy and smooth free chaining device for quick take up and positioning of slack chain.
- A non-slip rubber handle grip provides for extra protection and comfortable use.
- Improved safety via bolt-on swivel hooks which simplify the inspection process.
| Model | Capacity kg |
Number of chain falls | Chain dimensions d x p mm |
Lift with one full lever turn mm |
Handle pull at WLL daN |
Weight at standard lift (1.5 m) kg |
| PT-A 800 | 800 | 1 | 5.6 x 17.1 | 24 | 26 | 5.5 |
| PT-A 1600 | 1600 | 1 | 7.1 x 21.2 | 23 | 30 | 9.4 |
| PT-A 3200 | 3200 | 1 | 9 x 27.2 | 16 | 38 | 16.3 |
| PT-A 6300 | 6300 | 2 | 9 x 27.2 | 8 | 39 | 30.5 |
Download specification (PDF) in CMCO Catalogue online

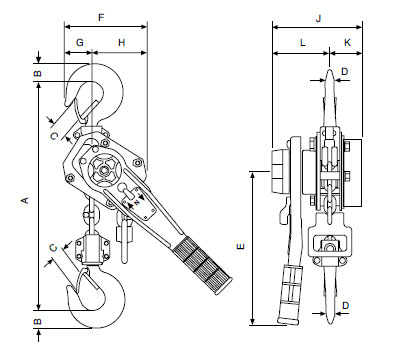

| A min., mm | 290 | 330 | 430 | 580 |
| B, mm | 21 | 27 | 36 | 53 |
| C, mm | 24 | 31 | 35 | 46 |
| D, mm | 13 | 20 | 24 | 43 |
| E, mm | 235 | 370 | 370 | 370 |
| F, mm | 120 | 138 | 177 | 259 |
| G, mm | 38 | 41 | 53 | 85 |
| H, mm | 82 | 97 | 124 | 174 |
| J, mm | 142 | 163 | 185 | 185 |
| K, mm | 52 | 65 | 83 | 83 |
| L, mm | 90 | 98 | 102 | 102 |
