We say: Ideal for low headroom applications with curve radius beams - Beam profile and dimension as well as curve radius must always be specified when ordering.

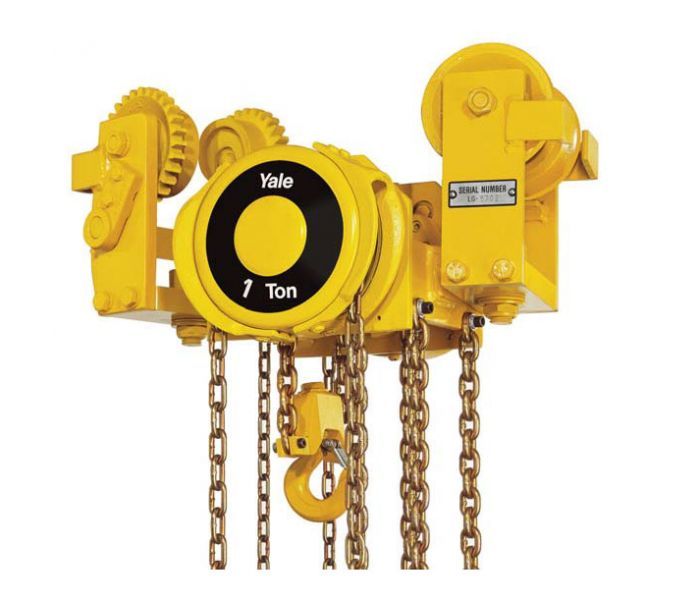

Swivel truck low headroom hoist with integrated push or geared trolley
Capacities: 250 - 6000kg
The hand chain hoist series VLR with integrated manual trolley drive features extremely low headroom capabilities and provides optimal usage of the available storage space in confined areas.
Hand wheel and gear case are positioned outside the reach of the bottom flange, thus allowing the bottom block to be raised almost to the underside of the beam. The swivel truck feature of the trolley suspension enables travelling on extremely tight radius curves.
Features include:
- All-steel construction with zinc-plated load and hand chains.
- Swivel trolley designed for runways with extremely narrow radius.
- All units are built to order for a predetermined beam dimension. They cannot be adjusted retro-actively to other beams.
- Anti-drop and anti-tilt devices as standard.
Options:
Overload protection, chain containers and buffers.
| Model | Capacity (WLL) kg |
Minimum beam width mm | Maximum beam width mm | Max. beam thickness mm | Minimum curve radius mm | Pull on hand chain at WLL daN | Weight | |
| VLRP kg |
VLRG kg |
|||||||
| VLRP/G 0.25 |
250 |
67 |
117 |
16 |
533 |
8 |
58 |
66 |
| VLRP/G 0.5 | 500 | 67 | 117 | 16 | 533 | 16 | 58 | 66 |
| VLRP/G 1.0 | 1000 | 76 | 117 | 16 | 533 | 32 | 58 | 66 |
| VLRP/G 1.5 | 1500 | 86 | 140 | 16 | 762 | 26 | 113 | 122 |
| VLRP/G 2.0 | 2000 | 86 | 140 | 16 | 762 | 35 | 115 | 123 |
| VLRP/G 3.0 | 3000 | 102 | 178 | 16 | 1066 | 19 | 158 | 172 |
| VLRP/G 4.0 | 4000 | 102 | 178 | 16 | 1066 | 27 | 160 | 175 |
| VLRP/G 5.0 | 5000 | 117 | 200 | 22 | 1219 | 33 | 213 | 227 |
| VLRP/G 6.0 | 6000 | 117 | 200 | 22 | 1219 | 41 | 213 | 227 |
Download PDF for full dimensions
