Yale UnoPlus-A Ratchet Lever Hoist (stamped steel)
Key Features
- Yale's Best Selling Lever Hoist
- 750, 1500, 3000 & 6000 Kg Capacity
- Standard Height of Lift 1.5M, Contact Sales For Longer Height of Lift
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
Buy online with standard 1.5-metre height of lift -For longer lifts - please contact our sales team.
Ratchet lever hoist Model UNOplus
Download specification (PDF) in CMCO Catalogue online
Features:
- Due to optimized gearing and improved bearings in the housing cover, a minimum effort is required to operate the short hand lever.
- Steel handwheel as standard.
- Automatic screw-and-disc type load brake with corrosion protected components.
- Standard free chaining device to quickly attach the load or to pull the chain through the hoist in both directions.
- Robust chain guide rollers eliminate fouling and jamming of chain on the load sheave.
- Sturdy bottom block with encapsulated bolt connections
- Alloyed steel link chain with zinc-plated resp. yellow chromated finish, in accordance with national and international standards and regulations.
- Drop forged suspension and load hooks are made from non-ageing, high tensile steel, and fitted with robust safety latches.
| Model | Capacity kg |
Number of chain falls | Chain dimensions d x p mm |
Lift with one full lever turn mm |
Handle pull at WLL daN |
Weight at standard lift (1.5 m) kg |
| UNOplus 750 | 750 | 1 | 6 x 18 | 20 | 20 | 7.2 |
| UNOplus 1500 | 1500 | 1 | 8 x 24 | 22 | 35 | 12.5 |
| UNOplus 3000 | 3000 | 1 | 10 x 30 | 17 | 40 | 21.5 |
| UNOplus 6000 | 6000 | 2 | 10 x 30 | 9 | 40 | 32.0 |

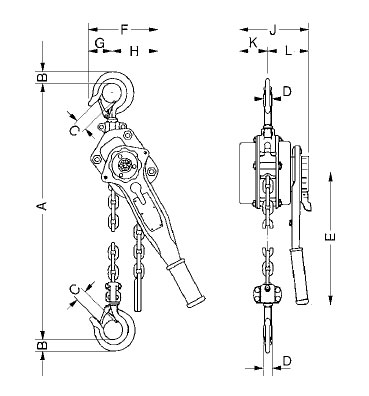

| Model | UNOplus 750 | UNOplus 1500 | UNOplus 3000 | UNOplus 6000 |
| A min., mm | 340 | 410 | 510 | 690 |
| B, mm | 22 | 28 | 36 | 45 |
| C, mm | 26 | 32 | 40 | 44 |
| D, mm | 16 | 21 | 27 | 33 |
| E, mm | 250 | 330 | 380 | 380 |
| F, mm | 150 | 170 | 220 | 220 |
| G, mm | 70 | 80 | 100 | 100 |
| H, mm | 80 | 90 | 120 | 120 |
| J, mm | 150 | 180 | 210 | 210 |
| K, mm | 60 | 80 | 90 | 90 |
| L, mm | 90 | 100 | 120 | 120 |
