Yale YLLHP/G Ultra Low Headroom Chain Hoist with Push or Geared Trolley

Be the first to review this product
Price on Request

Maximum 10 characters

In stock
Quantity
Add to Compare

Key Features

  • 500 kg to 10 tonne capacities
  • Push or geared travel options
  • Suits a wide range of beam widths
  • Anti-drop and anti-tilt devices as standard.and excellent rolling features
  • Range of options available on request
Delivery Options

Delivery Information

Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.

Returns Policy

Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.

Non-standard (Quote only, pre-order or custom-made products)

Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.

For more information see https://www.dlhonline.co.uk/terms-conditions

main product photo
For more information about this, or any of our other products contact our team on 0161 223 1990 or send us a message >

We say: This extremely compact unit takes up much less headroom than standard units"

Hand chain hoist with integrated push or geared type trolley (low headroom)
Model Yalelift YLLHP/G
Capacity 500 - 10000 kg

The hand chain hoist model Yalelift LH with integrated low headroom manual trolley is the consequent further
development of the Yalelift IT. Wherever an even smaller headroom is essential, the Yalelift LH is the ideal choice.
Model Capacity in kg/ number of chain falls Size Beam flange width
b



mm		 Beam flange thickness
t max.



mm		 Curve radius min.




m		 Weight at standard lift (3 m)
- P


kg		 Weight at standard lift (3 m)
- G


kg		 Weight at standard lift (3 m)
with locking device
- P
kg		 Weight at standard lift (3 m)
with locking device
- G
kg
YLLH 500 500/1 A 60 - 180 19 0.9 27 31 33 38
YLLH 500 500/1 B 180 - 300 19 0.9 27 32 34 38
YLLH 1000 1000/1 A 70 - 180 19 0.9 35 40 43 48
YLLH 1000 1000/1 B 180 - 300 19 0.9 36 41 44 49
YLLH 2000 2000/1 A 82 - 180 19 1.15 61 65 69 73
YLLH 2000 2000/1 B 180 - 300 19 1.15 62 67 70 75
YLLH 3000 3000/1 A 100 - 180 19 1.5 107 112 116 121
YLLH 3000 3000/1 B 180 - 300 19 1.4 109 114 118 123
YLLH 5000 5000/2 A 110 - 180 27 2.0 152 157 162 167
YLLH 5000 5000/2 B 180 - 300 27 1.8 156 161 166 171
YLLH 10000 10000/3 A 125 - 180 40 1.8 on request 230 on request on request
YLLH 10000 10000/3 B 180 - 310 40 1.8 on request 232 on request on request
  • P in connection with weight = with pushed trolley  G in connection with weight = with geared trolley


Features:

  • The specially developed chain reeving system and chain guide allow the bottom block to be pulled laterally to the hoist even further up and almost against the beam flange.
  • The integrated design of the innovative Yalelift LH uses the same manual trolleys as incorporated in the Yalelift IT series.
  • All models of the LH series up to 3000 kg capacity are provided with a single chain fall.
  • The proven and almost step-less adjustment system allows quick and easy assembly of the trolley.
  • The trolleys up to 5 t are offered for two beam ranges. - Range A for a flange width up to 180 mm is standard and covers approx. 80 % of all requirements. Conversion to range B for beam width up to 300 mm can be easily accomplished.
  • The trolley wheels are designed for a max. beam profile incline of 14 % (DIN 1025 - part 1), excellent rolling features are guaranteed by pre-lubricated, encapsulated ball bearings.
  • The low headroom version of the Yalelift IT is adjustable to fit a wide range of beam profiles (e.g. INP, IPE, IPB).
  • Anti-drop and anti-tilt devices as standard.
  • Excellent rolling features due to machined steel wheels mounted on pre-lubricated, encapsulated ball bearings.
Options:
  • Adjustable overload prevention device.
  • Stainless steel load and hand chains.
  • Chain container
  • Corrosion-resistant version
  • Explosion-proof version - Available up to a capacity of 5000 kg

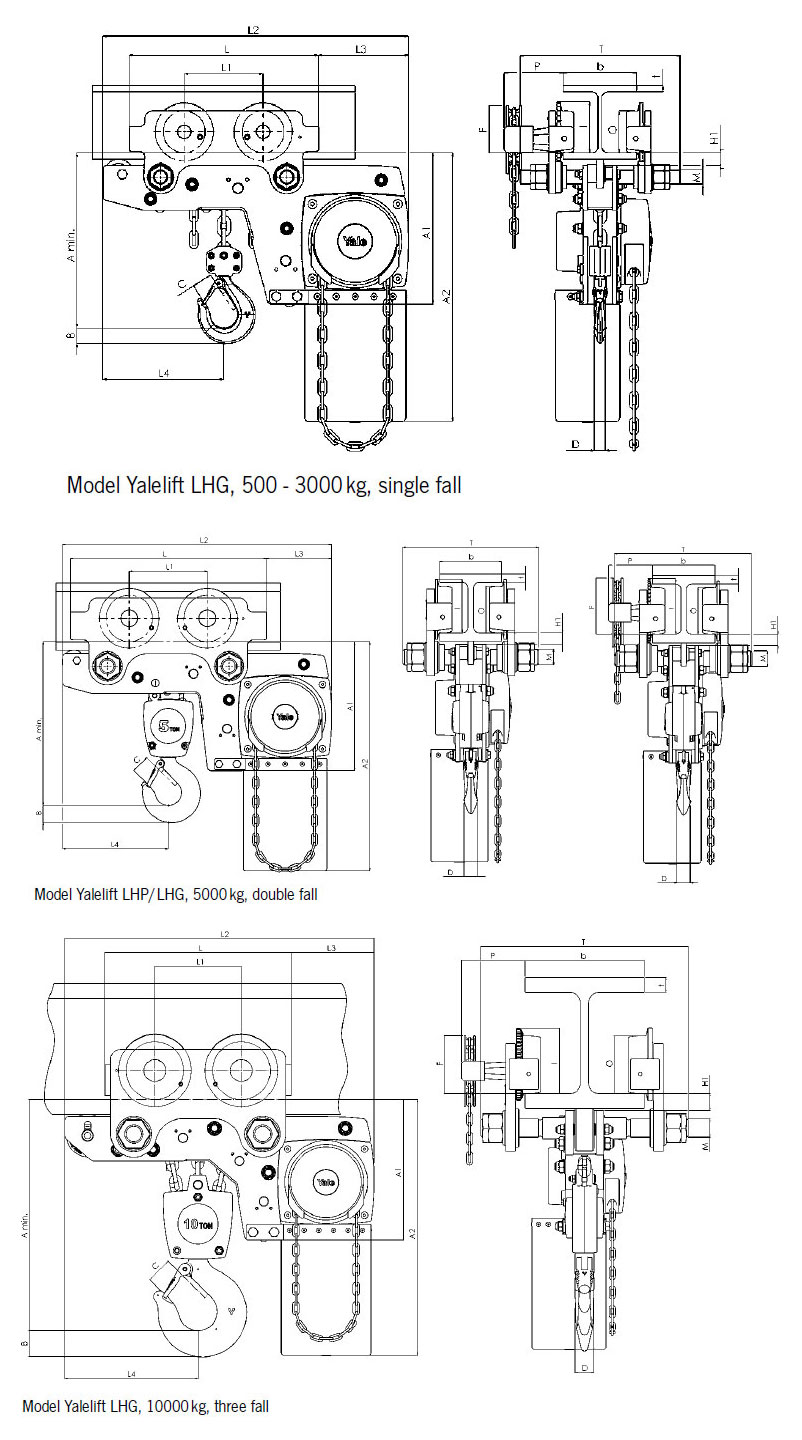

Dimensions
Model YLLH 500 YLLH 1000 YLLH 2000 YLLH 3000 YLLH 5000 YLLH 10000
A min., mm 188 211 264 316 425 565
A1, mm 223 250 289 346 345 365
A2, mm 381 427 511 614 612 665
B, mm 17 22 30 38 45 68
C, mm 24 29 35 40 47 68
D, mm 14 19 22 30 37 50
F (Geared trolley), mm 92 92 91 107 150 150
H1, mm 24 24 24 32 31 45
I (Pushed trolley), mm 72 72 96 131 143 170
I (Geared trolley), mm 77 77 98 133 149 170
L, mm 270 310 360 445 525 485
L1, mm 130 130 150 180 209 225
L2, mm 444 488 582 690 720 805
L3, mm 124 135 172 203 175 215
L4, mm 184 201 230 265 283 348
M, mm M18 M22 M27 M30 M42 M48
O, mm 60 60 80 112 125 150
P (Geared trolley), mm 108 110 112 112 117 165
T (Area A), mm 280 290 305 320 364 440
T (Area B), mm 400 410 425 440 484 540
