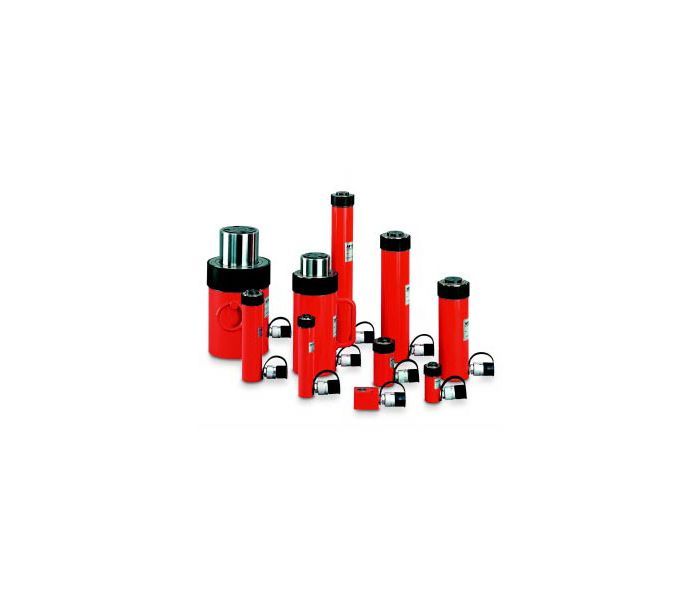

Yale YS 'Single acting' 5t to 23t Universal Cylinders
Delivery Options
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
Single-acting with spring return, capacity 5 – 100 t
Robust construction with long guides allows the units to withstand abuse and better tolerate eccentric and side loading, yet is convenient to use with only one quick-release coupler hose connection and a spring return.
Universal cylinders are designed for all jobs where high forces but compact dimensions are required: e.g. straightening steel constructions, removing parts like shafts, axles, lifting, positioning, weighing, supporting, testing as well as for all general assembly and repair applications. Due to the various mounting threads, the cylinders can easily be installed in clamping devices, welding fixtures, frame presses, etc.
Features
- Yale ChroMo-Design.
- Operating pressure max. 700 bar.
- Single-acting with spring return.
- Robust design with long piston bearings to withstand eccentric loading.
- Cylinder body and piston are made from solid chromium-molybdenum steel and heat-treated.
- Hard-chromium plated piston with a replaceable, heat-treated saddle.
- Metric mounting threads on cylinder collar, in the base and piston rod (5 to 30 t).
- Stop ring can bear full capacity (pressure) and is fitted with dirt wiper.
- Interchangeable hardened saddle.
- Dirt wiper protects against dirt.
- Oil port thread 3/8 NPT.
- female coupler half model CFY-1.
- Model YS-50/100 and YS-50/160 with carrying handle.
- Models YS-50/320 up to YS-100/200 with lifting rings.
Technical data Yale Universal cylinder model YS:
| Cylinder size | model | EAN-NO. 4025092* |
Capacity | Stroke | Effective plunger area |
Oil volume max. |
Closed height | outside cylinder diameter | Weight |
| t | kN | mm | cm 2 | cm 3 | mm | mm | kg | ||
| 5 | YS-5/15 | *150002 | 50 | 15 | 7.2 | 11 | 45 | 41 | 0.9 |
| 5 | YS-5/25 | *150019 | 50 | 25 | 7.2 | 18 | 97 | 42 | 1.0 |
| 5 | YS-5/75 | *150026 | 50 | 75 | 7.2 | 53 | 157 | 42 | 1.5 |
| 5 | YS-5/127 | *150033 | 50 | 127 | 7.2 | 90 | 214 | 42 | 2.0 |
| 5 | YS-5/180 | *150040 | 50 | 180 | 7.2 | 127 | 267 | 42 | 2.4 |
| 10 | YS-10/25 | *150057 | 100 | 25 | 14.3 | 37 | 90 | 57 | 1.6 |
| 10 | YS-10/50 | *150064 | 100 | 50 | 14.3 | 73 | 125 | 57 | 2.1 |
| 10 | YS-10/100 | *150071 | 100 | 100 | 14.3 | 146 | 178 | 57 | 2.8 |
| 10 | YS-10/150 | *150088 | 100 | 150 | 14.3 | 218 | 250 | 57 | 4.1 |
| 10 | YS-10/200 | *150095 | 100 | 200 | 14.3 | 291 | 300 | 57 | 4.7 |
| 10 | YS-10/250 | *150101 | 100 | 250 | 14.3 | 363 | 352 | 57 | 5.5 |
| 10 | YS-10/300 | *150118 | 100 | 300 | 14.3 | 436 | 407 | 57 | 6.3 |
| 15 | YS-15/25 | *150125 | 150 | 25 | 21.5 | 53 | 110 | 67 | 2.7 |
| 15 | YS-15/50 | *150132 | 150 | 50 | 21.5 | 106 | 140 | 67 | 3.3 |
| 15 | YS-15/100 | *150149 | 150 | 100 | 21.5 | 213 | 190 | 67 | 4.3 |
| 15 | YS-15/150 | *150156 | 150 | 150 | 21.5 | 319 | 260 | 67 | 5.8 |
| 15 | YS-15/200 | *150163 | 150 | 200 | 21.5 | 425 | 310 | 67 | 7.0 |
| 15 | YS-15/250 | *150170 | 150 | 250 | 21.5 | 531 | 365 | 67 | 8.0 |
| 15 | YS-15/300 | *150187 | 150 | 300 | 21.5 | 637 | 420 | 67 | 9.0 |
| 15 | YS-15/350 | *150194 | 150 | 350 | 21.5 | 744 | 472 | 67 | 10.0 |
| 23 | YS-23/25 | *150200 | 230 | 25 | 32.9 | 83 | 116 | 85 | 5.0 |
| 23 | YS-23/50 | *150217 | 230 | 50 | 32.9 | 166 | 150 | 85 | 6.0 |
| 23 | YS-23/100 | *150224 | 230 | 100 | 32.9 | 332 | 202 | 85 | 7.5 |
| 23 | YS-23/160 | *150231 | 230 | 160 | 32.9 | 531 | 277 | 85 | 10.0 |
| 23 | YS-23/210 | *150248 | 230 | 210 | 32.9 | 697 | 330 | 85 | 12.0 |
| 23 | YS-23/250 | *150255 | 230 | 250 | 32.9 | 830 | 376 | 85 | 13.5 |
| 23 | YS-23/300 | *150262 | 230 | 300 | 32.9 | 996 | 428 | 85 | 15.0 |
| 23 | YS-23/345 | *150279 | 230 | 345 | 32.9 | 1145 | 477 | 85 | 16.5 |
| 30 | YS-30/125 | *150286 | 300 | 125 | 42.9 | 552 | 245 | 102 | 13.0 |
| 30 | YS-30/200 | *150293 | 300 | 200 | 42.9 | 884 | 325 | 102 | 17.0 |
| 50 | YS-50/50 | *150309 | 500 | 50 | 71.5 | 355 | 170 | 125 | 15.0 |
| 50 | YS-50/100 | *150316 | 500 | 100 | 71.5 | 709 | 220 | 125 | 19.0 |
| 50 | YS-50/160 | *150323 | 500 | 160 | 71.5 | 1135 | 285 | 125 | 24.0 |
| 50 | YS-50/320 | *150330 | 500 | 320 | 71.5 | 2269 | 460 | 125 | 37.0 |
| 70 | YS-70/150 | *150347 | 700 | 150 | 100.0 | 1478 | 285 | 146 | 32.0 |
| 70 | YS-70/330 | *150354 | 700 | 330 | 100.0 | 3252 | 490 | 146 | 52.0 |
| 100 | YS-100/100 | *150378 | 1000 | 100 | 143.0 | 1432 | 275 | 180 | 43.0 |
