Hand chain hoist with integrated push or geared type trolley
Protection classification:
EX II 2 GD c IIB T4 T 125° C X,
EX II 2 GD c IIB T3 T
| Model |
Capacity in kg/ number of chain falls |
Size |
Beam flange width b mm |
Beam flange thickness t max. mm |
Min. curve radius m |
Weight* kg |
Weight* with beam brake kg |
| YLITP ATEX 500 | 500/1 | A | 50 - 180 | 19 | 0.9 | 20 | 26 |
| YLITP ATEX 500 | 500/1 | B | 180 - 300 | 19 | 0.9 | 21 | 27 |
| YLITP ATEX 1000 | 1000/1 | A | 50 - 180 | 19 | 0.9 | 27 | 35 |
| YLITP ATEX 1000 | 1000/1 | B | 180 - 300 | 19 | 0.9 | 29 | 37 |
| YLITP ATEX 2000 | 2000/1 | A | 58 - 180 | 19 | 1.15 | 44 | 52 |
| YLITP ATEX 2000 | 2000/1 | B | 180 - 300 | 19 | 1.15 | 46 | 54 |
| Model |
Capacity in kg/ number of chain falls |
Size |
Beam flange width b mm |
Beam flange thickness t max. mm |
Min. curve radius m |
Weight* kg |
Weight* with beam brake kg |
| YLITG ATEX 500 | 500/1 | A | 50 - 180 | 19 | 0.9 | 24 | 31 |
| YLITG ATEX 500 | 500/1 | B | 180 - 300 | 19 | 0.9 | 25 | 32 |
| YLITG ATEX 1000 | 1000/1 | A | 50 - 180 | 19 | 0.9 | 32 | 40 |
| YLITG ATEX 1000 | 1000/1 | B | 180 - 300 | 19 | 0.9 | 33 | 41 |
| YLITG ATEX 2000 | 2000/1 | A | 58 - 180 | 19 | 1.15 | 49 | 57 |
| YLITG ATEX 2000 | 2000/1 | B | 180 - 300 | 19 | 1.15 | 50 | 58 |
| YLITG ATEX 3000 | 3000/1 | A | 74 - 180 | 27 | 1.5 | 82 | 91 |
| YLITG ATEX 3000 | 3000/1 | B | 180 - 300 | 27 | 1.4 | 84 | 93 |
| YLITG ATEX 5000 | 5000/2 | A | 98 - 180 | 27 | 2.0 | 130 | 140 |
| YLITG ATEX 5000 | 5000/2 | B | 180 - 300 | 27 | 1.8 | 134 | 144 |
| YLITG ATEX 10000 | 10000/3 | B | 125 - 310 | 40 | 1.8 | – | – |
Features
- All units of this series up to a capacity of 3000 kg are provided with single chain fall and the min. headroom has been further reduced. Ideal for applications with low ceilings and limited headroom.
- The proven and almost stepless adjustment system allows quick and easy assembly of the trolley.
- Trolleys up to 5 t are offered for two beam ranges. Range A for a flange width up to 180 mm is standard and covers approx. 80 % of all requirements. Conversion to range B for beam width up to 300 mm can be easily accomplished.
- The solid bronze trolley wheels are designed for a max. beam profile incline of 14 % (DIN 1025 - part 1), excellent rolling features are guaranteed by prelubricated, encapsulated ball bearings.
- Anti-tilt and anti-drop devices are standard.
- Explosion protected version with spark resistant coating.
- Trolleys equipped with rubber buffers.
- Copper-plated load hooks.
- Load chain from stainless steel.
- Overload prevention device
- Chain container
- Beam locking device

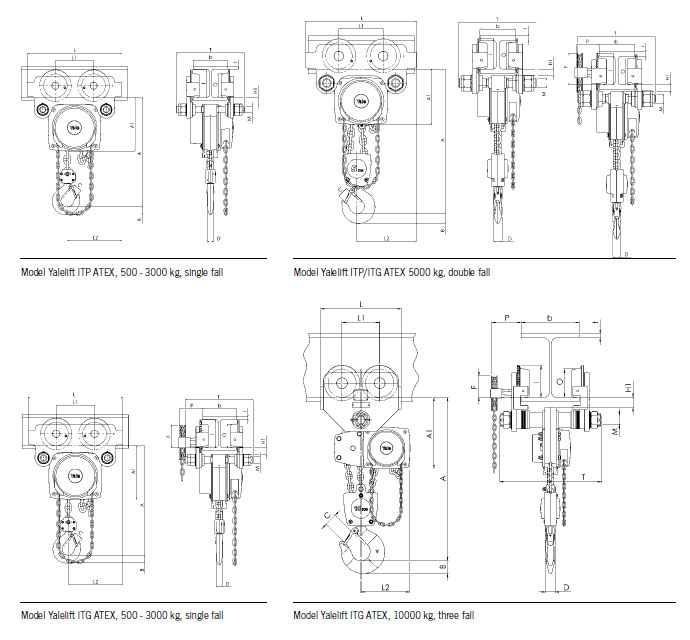

| Model |
YLIT ATEX 500 |
YLIT ATEX 1000 |
YLIT ATEX 2000 |
YLIT ATEX 3000 |
YLIT ATEX 5000 |
YLIT ATEX 10000 |
| Amin., mm | 245 | 272 | 323 | 382 | 550 | 784 |
| A1, mm | 158 | 178 | 205.5 | 252 | 260.5 | 380 |
| A2, mm | – | – | – | – | – | – |
| B, mm | 17 | 22 | 30 | 38 | 45 | 68 |
| C, mm | 24 | 29 | 35 | 40 | 47 | 68 |
| D, mm | 14 | 19 | 22 | 30 | 37 | 50 |
| F (Geared), mm | 92 | 92 | 91 | 107 | 149.5 | 113 |
| H1, mm | 24.5 | 24 | 23.5 | 32 | 30.5 | 55 |
| I (Pushed), mm | 71.5 | 71.5 | 95.5 | - | - | - |
| I (Geared), mm | 76.5 | 76.5 | 98 | 132.5 | 148.5 | 169 |
| L, mm | 270 | 310 | 360 | 445 | 525 | 430 |
| L1, mm | 130 | 130 | 150 | 180 | 209 | 200 |
| L2, mm | 159 | 175 | 207 | 256 | 283 | 261 |
| M, mm | M 18 | M 22 | M 27 | M 30 | M 42 | M 48 |
| O, mm | 60 | 60 | 80 | 112 | 125 | 150 |
| P (Geared), mm | 108 | 110 | 112 | 112 | 117 | 158 |
| T (area A), mm | 280 | 290 | 305 | 320 | – | – |
| T (area B), mm | 400 | 410 | 425 | 440 | 484 | 540 |
Fill in our online enquiry form above and request your quote today!
Specification available to download in CMCO Atex brochure online Click Here or contact our sales team
