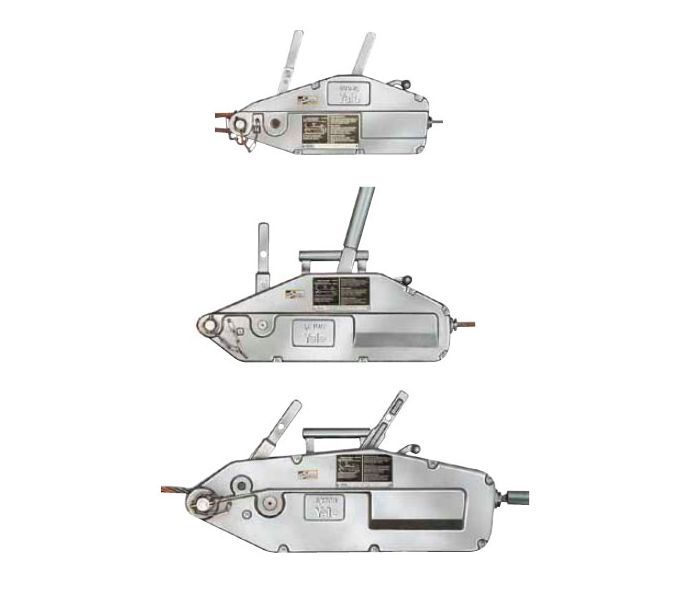

Yaletrac Heavy Duty Cable Pullers
Key Features
- Yaletrac units sold online complete with 20mtr of cable.
- 3 sizes - Y8 800 kg - Y16 1600 kg - Y32 3200 kg lifting capacities
- Forward and reversing levers in tandem provide slim design and assure power transfer along the centre line.
- Overload protection is by a shearing pin in the forward lever.
- Spare shear pins are conveniently located in the carrying handle or operating lever.
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
Cable puller model Yaletrac
Specifcations
| Model | Capacity (WLL) | Wire Rope diameter mm |
Rope advanced per double stroke (mm) |
Lever pull at WLL daN |
Lever length (mm) |
Weight (without rope) kg |
Rope Weight ( kg/m) |
| Y08 | 800kg | 8.4 | 60 | 24 | 800 | 7.0 | 0.29 |
| Y16 | 1600kg | 11.5 | 60 | 30 | 790/1190 | 14.0 | 0.53 |
| Y32 | 3200kg | 16 | 40 | 50 | 790/1190 | 21.0 | 1.00 |

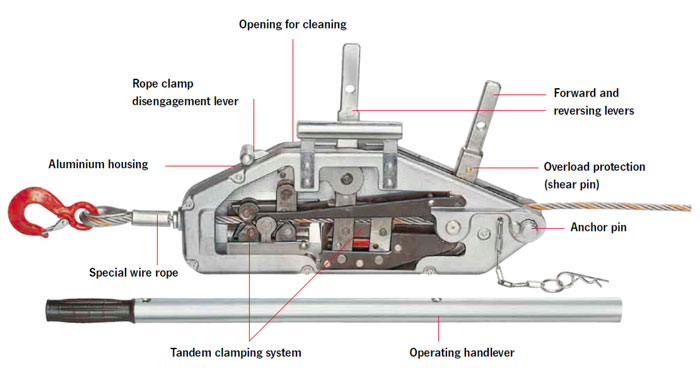

It has a lightweight, compact, high tensile aluminium alloy housing with a large flat bottom surface for increased
- Forward and reversing levers in tandem provide slim design and assure power transfer along the centre line.
- Overload protection is by a shearing pin in the forward lever. Spare shear pins are conveniently located in the carrying handle or operating lever. A broken pin can be replaced without removing the load.
- A lever disengages the rope clamp system allowing easy, smooth installation of the rope.
- Yaletrac uses a special flexible rope. It has six strands with a steel core and is identified by an orange strand. The rope is tapered at one end for easy threading and fitted with an eye sling hook with safety latch on the other end.
- The parallel arrangement of the clamping system protects the rope by distributing the clamping forces evenly. A long rope advance per each lever stroke increases the working speed.
- The large opening in the top of the unit allows easy cleaning: simply flush the unit with water, apply motor oil for lubrication and the Yaletrac is again ready for use.

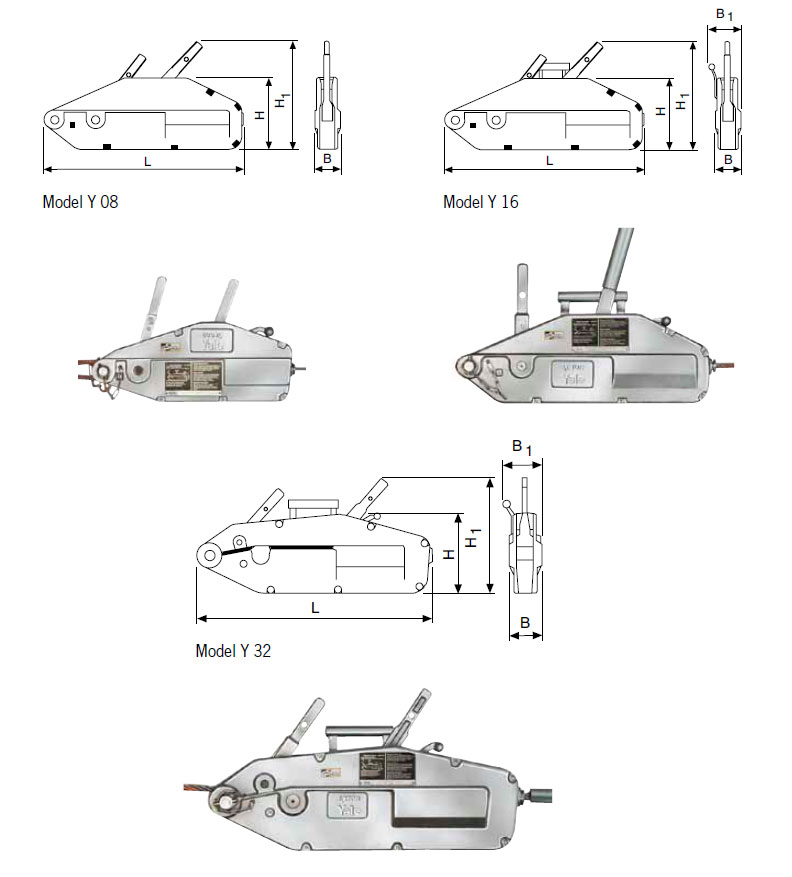

| Model | L mm |
H mm |
H1 mm |
B mm |
B1 mm |
Lever length mm | Rope diameter mm |
| Y08 |
430 |
168 |
240 |
60 |
- |
800 |
8.4 |
| Y16 | 545 | 190 | 270 | 72 | 97 | 790/1190 | 11.5 |
| Y32 | 680 | 230 | 330 | 91 | 110 | 790/1190 | 16.0 |
Options - Contact us for prices
- Additional shorter and longer ropes 2m to 50m
- Spare parts and ropes
- Storage box
