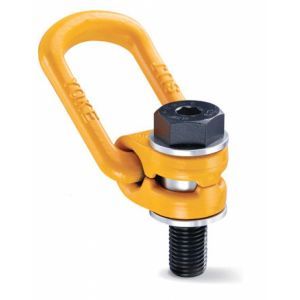

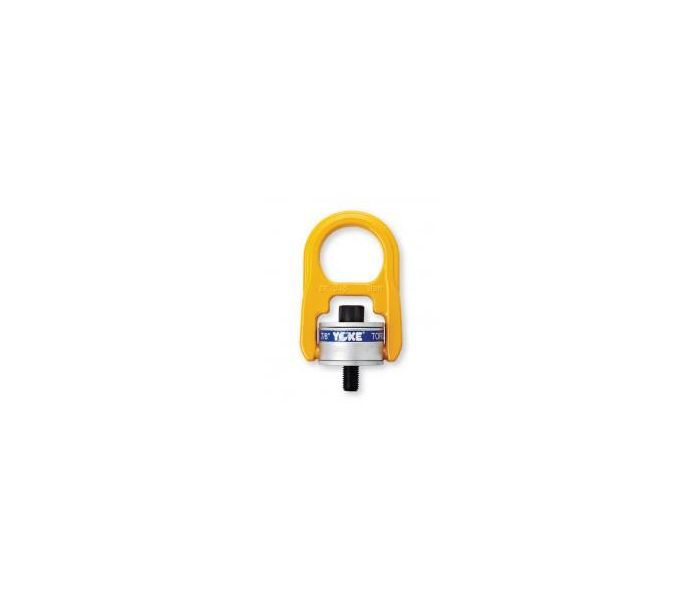

Yoke Swivel Hoist Ring with UNC thread
Key Features
- 5/16" to 2" UNC threads
- Heavy duty flexible attachment point
- Suited for lifting objects with no obvious attachment points
- Ideal fo Mold and die handling - Pump and valve handling
- Yoke Hoist Rings will turn 360° and pivot 180° allowing the adjustment in pull direction
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
- Yoke Hoist Rings will turn 360° and pivot 180° allowing the adjustment in pull direction
- Yoke Hoist Rings retain 100% of the rated capacity @ 90°
- Extended shank length available on request

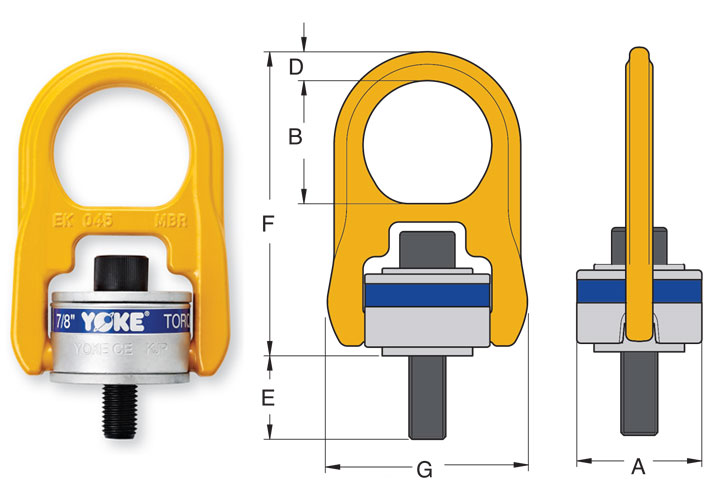

TECHNICAL SPECIFICATIONS
